1TJ1B-07008S7R01

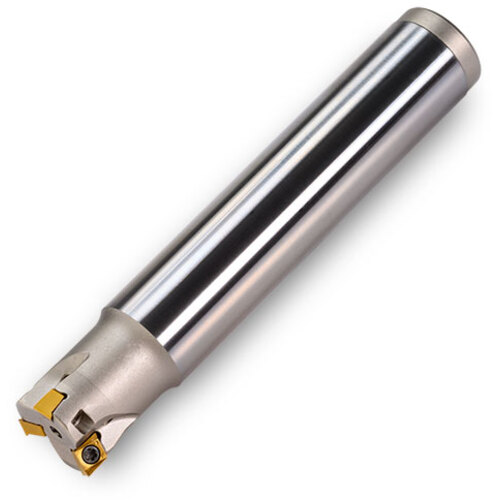

Indexable End Mill; 3/4″ Dia. × 0.14″ LOC × 3/4″ Shank Dia. × 5″ OAL × 0.87″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3/4″ | Usable Length (LU) | 0.87″ |
| Cutting Diameter (DC) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.14″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Protruding Length (LPR) | 3″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corners: .008″ .015″ .031″ R & Hi-Feed | Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.694
