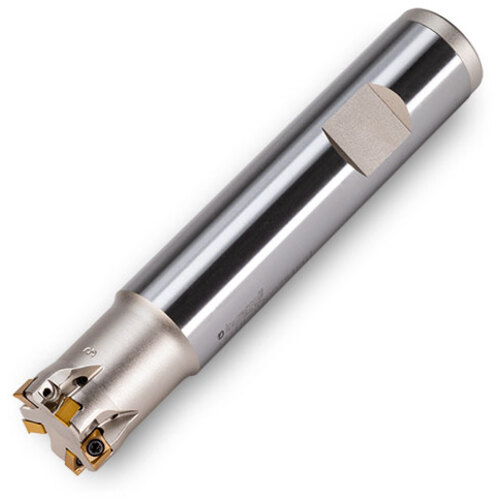

1TJ1B-10017E1R01
Insert corner: .008″ .015″ .031″ R & Hi-Feed
| Cutting Diameter (DC/DCX) | 1″ | Usable Length (LU) | 1-1/4″ |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.14″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4-3/4″ | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Protruding Length (LPR) | 1-3/4″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corner: .008″ .015″ .031″ R & Hi-Feed | Country of Origin | Usa |
Shipping Info
Package Weight
1.047
