1KJ1B-06010S6R01

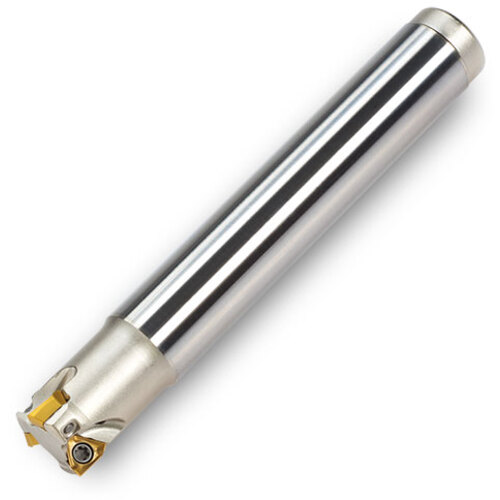

Indexable End Mill; 5/8″ Dia. × 0.13″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL × 1″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 5/8″ | Usable Length (LU) | 1″ |
| Cutting Diameter (DC) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.13″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3-1/2″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 1.59″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: .008″ & .015″ R | Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.375
