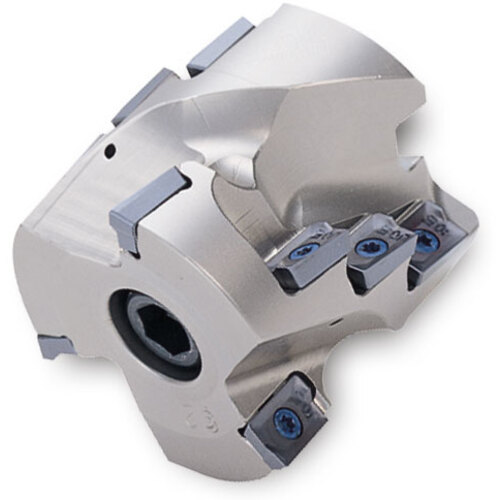

22J3G063045F2R00
Produces smooth blend between stations (visible line but no step on side wall) 32-63 Ra surface finishes when engaging the wiper (WEP) Insert Corner: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8 & 6.4 R

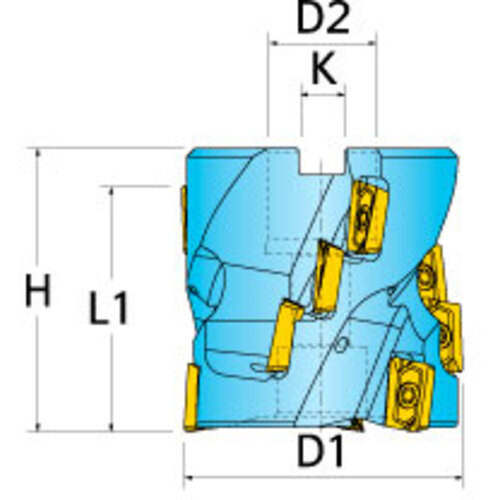

| Cutting Diameter (DC/DCX) | 2.48″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 2.48″ | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.772″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 2.48″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 3.2 Degrees | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.063″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Produces smooth blend between stations (visible line but no step on side wall) 32-63 Ra surface finishes when engaging the wiper (WEP) Insert Corner: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8 & 6.4 R | Country of Origin | Usa |
Shipping Info
Package Weight
2.086
