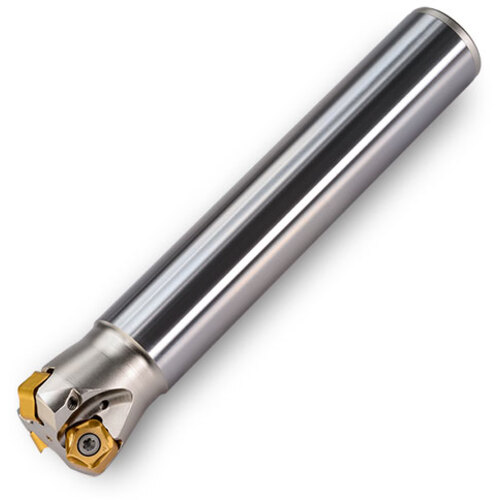

1DP1P-15020S5R01
Same insert fits Hi-Feed & 65° MIlls Positive rake and reinforced edge offer low cutting forces and smooth machining in deep cavities High ramping capability Great price-per-edge economy!
| Cutting Diameter (DC/DCX) | 1-1/2″ | Corner Radius (RE) | 0.21″ |
| Cutting Diameter (DC) | 0.85″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 25 Degrees |
| Depth of Cut Maximum (APMX) | 0.118″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 8″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2.2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slotting | | Protruding Length (LPR) | 5.34″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Usable Length (LU) | 1.78″ |
Product Features
| Family Description | Same insert fits Hi-Feed & 65° MIlls Positive rake and reinforced edge offer low cutting forces and smooth machining in deep cavities High ramping capability Great price-per-edge economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.008
