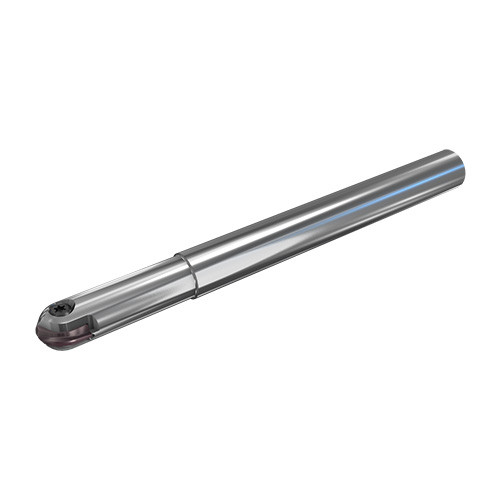

TBNC-150-12WS1500
Carbide-Cored Straight Shank Ball Nose Cutter Body for RigidLock Inserts
| Cutting Diameter (DC/DCX) | 40 mm | Head Length (LH) | 4″ |
| Cutting Diameter (DC) | 1-1/2″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 13 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 12″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Measurement Type | Inch |
| Application | | Ext Milling Rigid Lock | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | TBNR1500 | TBRR1500 | Neck Diameter (DN) | 1-3/8″ |
| Weight of Item (WT) | 0.73 Kg |
Product Features
Family Description
Carbide-Cored Straight Shank Ball Nose Cutter Body for RigidLock Inserts
Country of Origin
USA
