1TG1G025070T5R00

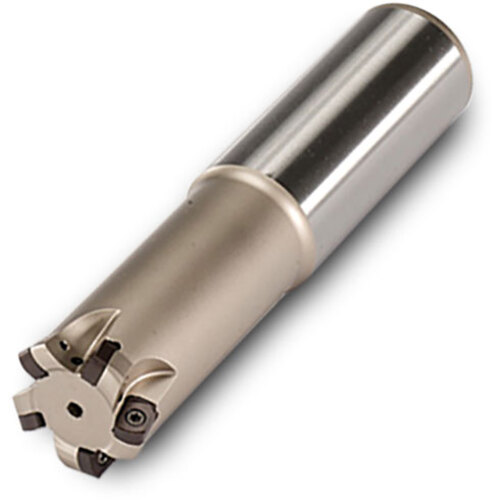

Indexable End Mill; 25 mm Dia. × 1.524 mm LOC × 25 mm Shank Dia. × 150 mm OAL × 70 mm LU ; 90 Degrees

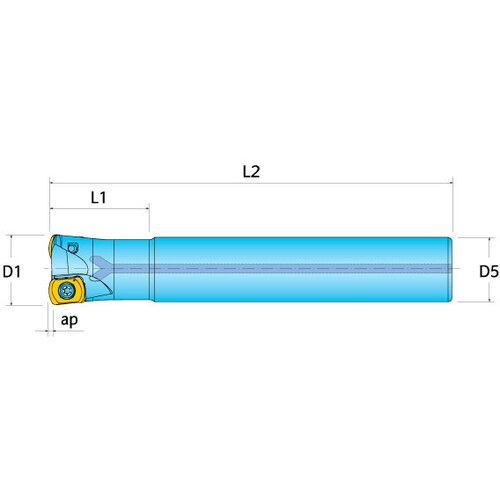

| Cutting Diameter (DC/DCX) | 25 mm | Corner Radius (RE) | 2.39 mm |
| Cutting Diameter (DC) | 14.7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 1.524 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 25 mm |
| Usable Length (LU) | 70 mm |
Product Features
| Family Description | 1.5 mm (.059″) Max. depth of cut Three different insert edge preparations provide application flexibility. Excellent high feed performance & economy! | Country of Origin | S.Korea |
