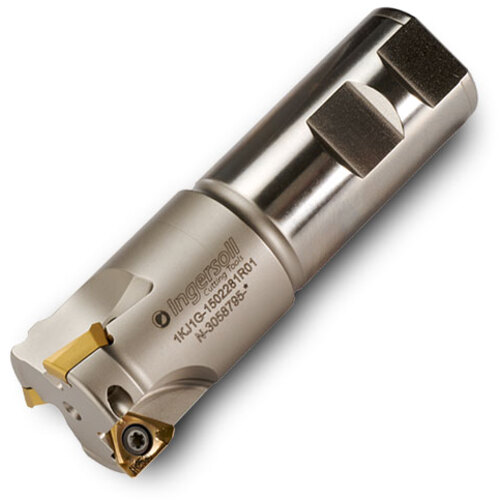

1KJ1G032040W6R00
Insert corners: 0.4, 0.8, 1.6 & 2.4mm R

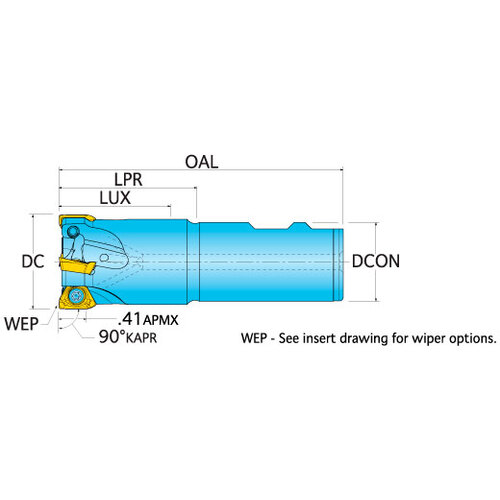

| Cutting Diameter (DC/DCX) | 32 mm | Usable Length (LU) | 40 mm |
| Cutting Diameter (DC) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 11 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: 0.4, 0.8, 1.6 & 2.4mm R | Country of Origin | Usa |
Shipping Info
Package Weight
1.422
