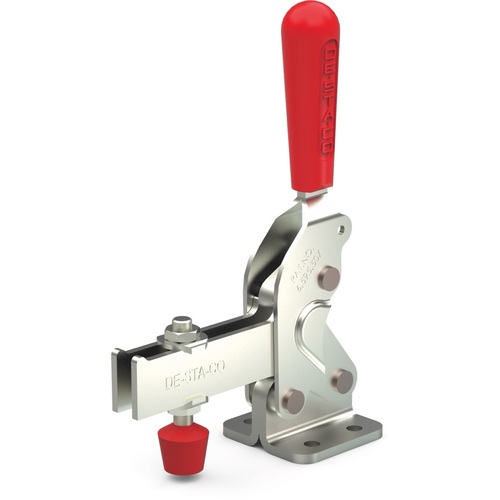

Toggle Clamp - Model 2010-U Vertical Hold Down U-Shape Style; 1,400 lbs Holding Capacity
| Style | Vertical Handle Hold Down | Mounting Diameter | 0.34″ |
| Type | Toggle Clamp | Mounting Length | 1.25″ |
| Arm | 2.62″ | Mounting Width | 1.78″ |
| Height Under Clamp Arm | 1.70″ | Overall Width | 2.62″ |
| Holding Capacity | 1400 lbs | Spindle Size | M10 or 3/8″ |
| Overall Height | 9.08″ | Base Length | 2.53″ |
| Overall Length | 6.09″ | Maximum Clamping Thickness | 1.70″ |
| Spindle | .78″ | Toggle Lock Plus Lever | No |
| Thread Size | M10 | Accessory Fastener Included | 240208-M M10 × 1.50 |
| model_no | 2010-U | Clasp Arm Length | 3.56″ |
| Includes | 69 | Bar Type | Flanged |
| Bar Style | U-Shape | Clamp Arm Length | 3.55″ |
Product Features
| Country of Origin | USA |
