TXGSC01I015-07-00

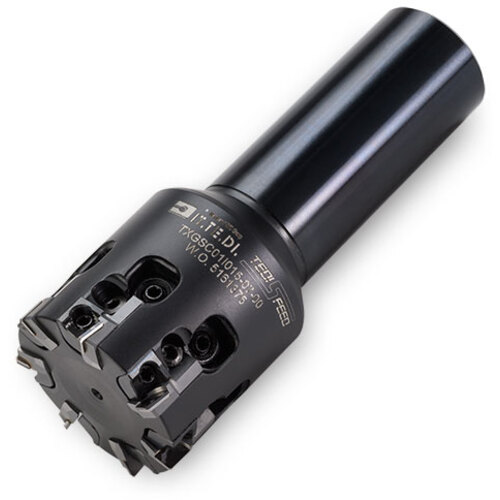

Indexable End Mill; 1.44″ Dia. × 0.433″ LOC × 1″ Shank Dia. × 3.94″ OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1.44″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 1.44″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3.94″ | Measurement Type | Inch |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Country of Origin | Usa |
