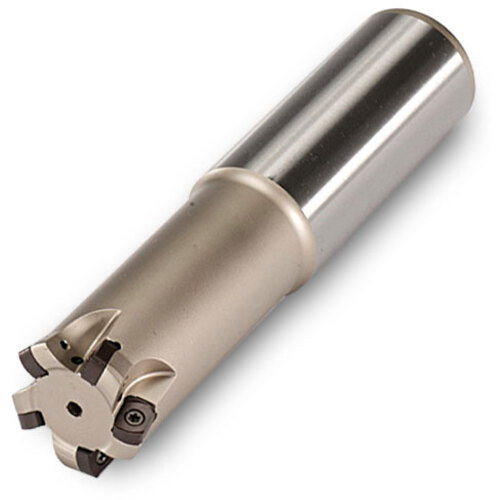

1TG1F025060T5R00
.040″ Max. depth of cut Three different insert edge preparations provide application flexibility Excellent high-feed performance & economy!

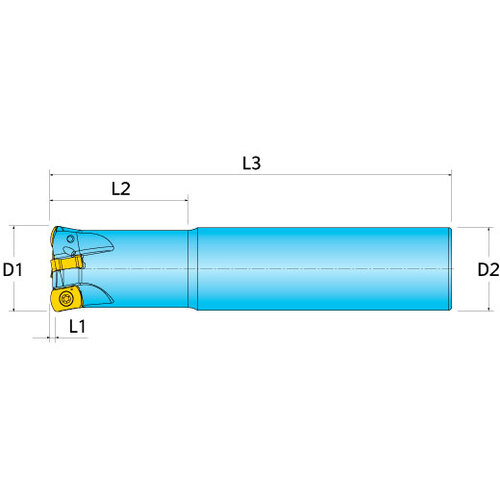

| Cutting Diameter (DC/DCX) | 25 mm | Corner Radius (RE) | 1.88 mm |
| Cutting Diameter (DC) | 17.3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 1 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 0.8 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 25 mm |
| Usable Length (LU) | 60 mm |
Product Features
| Family Description | .040″ Max. depth of cut Three different insert edge preparations provide application flexibility Excellent high-feed performance & economy! | Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
1.124
