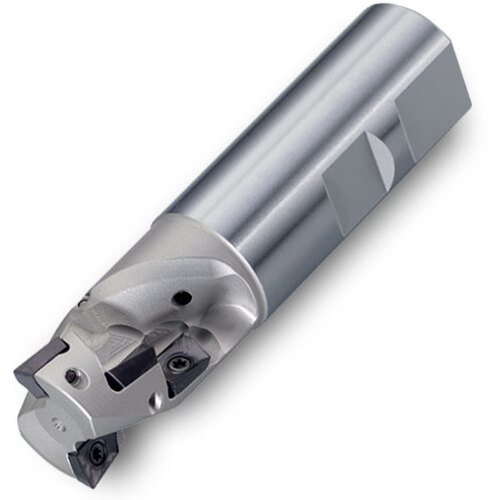

22J3R040046W6R00
Insert corners: 0.4, 0.8, 1.6, 2.0, 2.4, 3.1, 4.0 mm R
| Cutting Diameter (DC/DCX) | 1.575″ | Usable Length (LU) | 2.559″ |
| Cutting Diameter (DC) | 1.575″ | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.811″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 5.118″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 3.2 Degrees | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Protruding Length (LPR) | 2.559″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corners: 0.4, 0.8, 1.6, 2.0, 2.4, 3.1, 4.0 mm R | Country of Origin | Usa |
Shipping Info
Package Weight
1.565
