12Q1R-0701780R01

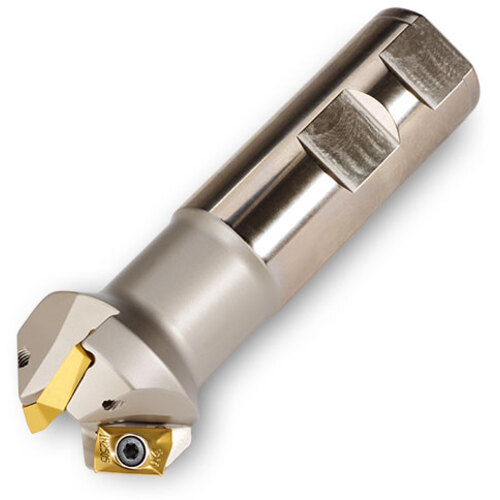

Indexable End Mill; 1.641″ Dia. × 0.115″ LOC × 1″ Shank Dia. × 4″ OAL ; 15 Degrees
| Cutting Diameter (DC/DCX) | 1.641″ | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Cutting Diameter (DC) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Angle | 150 Degrees |
| Depth of Cut Maximum (APMX) | 0.115″ | Measurement Type | Inch |
| Overall Length (OAL) | 4″ | Body Material | Steel |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | | Protruding Length (LPR) | 1-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1.641″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | .45 cutting edge length 13mm Insert with 2 indexes | Country of Origin | USA |
