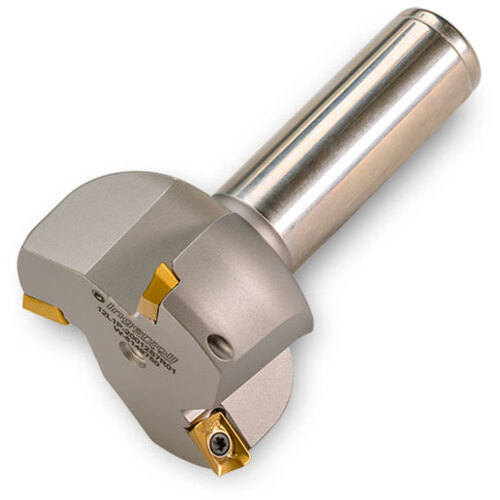

12L1P-20012S7R01
Insert Corner: .01″ R Uses opposing unused edges of BOMT09 insert, offering the value to obtain 4 indexes. Ideal for squaring up blocks and general facing.
| Cutting Diameter (DC/DCX) | 2.13″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 2″ | Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.12″ | Measurement Type | Inch |
| Overall Length (OAL) | 3-1/4″ | Body Material | Steel |
| Application | | Facing | | Protruding Length (LPR) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 2.13″ |
Product Features
| Family Description | Insert Corner: .01″ R Uses opposing unused edges of BOMT09 insert, offering the value to obtain 4 indexes. Ideal for squaring up blocks and general facing. | Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
0.002
