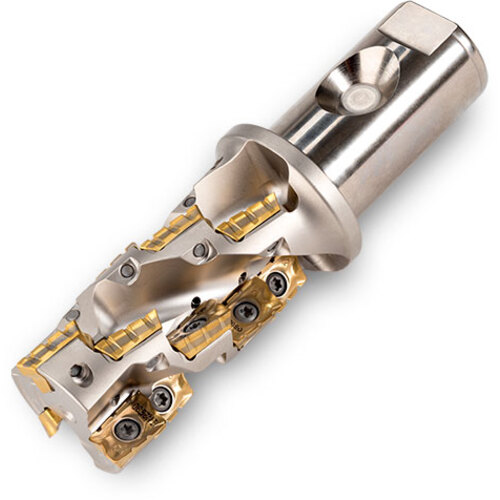

22J3G-1503381R01
Produces smooth blend between stations (visible line but no step on side wall) 32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: .015″, .031″, .062″, .093″ R
| Cutting Diameter (DC/DCX) | 1-1/2″ | Usable Length (LU) | 3″ |
| Cutting Diameter (DC) | 1-1/2″ | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 2.82″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 5-1/2″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Protruding Length (LPR) | 3.3″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Produces smooth blend between stations (visible line but no step on side wall) 32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: .015″, .031″, .062″, .093″ R | Country of Origin | USA |
Shipping Info
Package Weight
0.003
