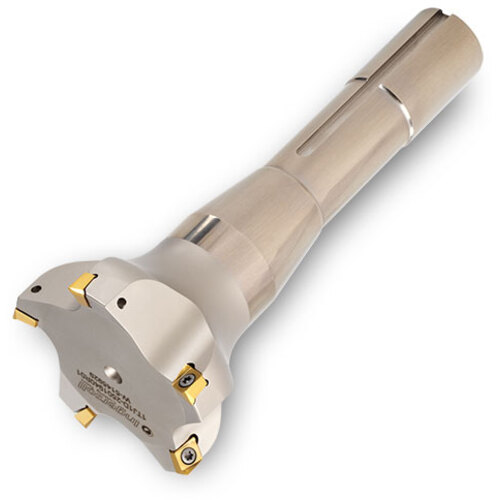

1TJ1D-3001940R01
Insert corners: .015″ .031″ .039″ .047″ .059″ .062″.079″ R & Hi-Feed 32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper
| Cutting Diameter (DC/DCX) | 3″ | Functional Length (LF) | 1.9″ |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.24″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5.9″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.3 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: .015″ .031″ .039″ .047″ .059″ .062″.079″ R & Hi-Feed 32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper | Country of Origin | Usa |
Shipping Info
Package Weight
0.005
