1KJ1G035043X8R00
Insert corners: 0.4, 0.8, 1.6 & 2.4mm R

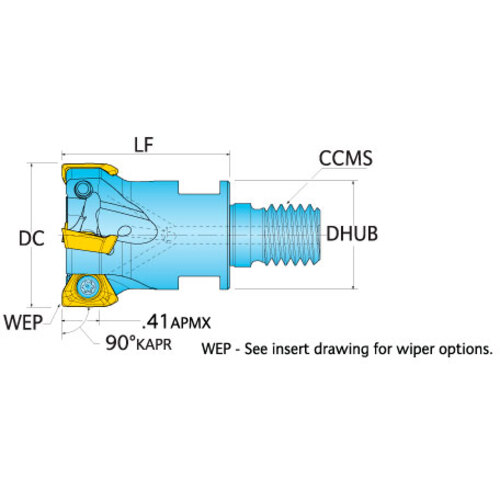

| Cutting Diameter (DC/DCX) | 1.378″ | Functional Length (LF) | 1.693″ |
| Cutting Diameter (DC) | 1.378″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.4 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corners: 0.4, 0.8, 1.6 & 2.4mm R | Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
0.419
