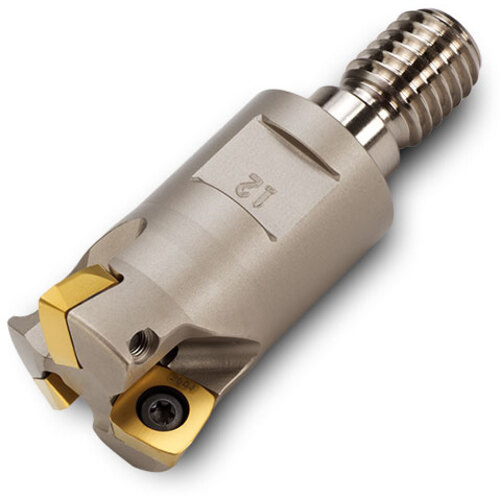

15G1F-15017X9R01
.060″ Max. depth of cut Superior high-feed semi finish laid by both axial and radial wipers
| Cutting Diameter (DC/DCX) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1.022″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.06″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2.3 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | | Hub Diameter (DHUB) | 1.42″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1.57″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Corner Radius (RE) | 0.094″ |
Product Features
| Family Description | .060″ Max. depth of cut Superior high-feed semi finish laid by both axial and radial wipers | Country of Origin | Usa |
Shipping Info
Package Weight
0.002
