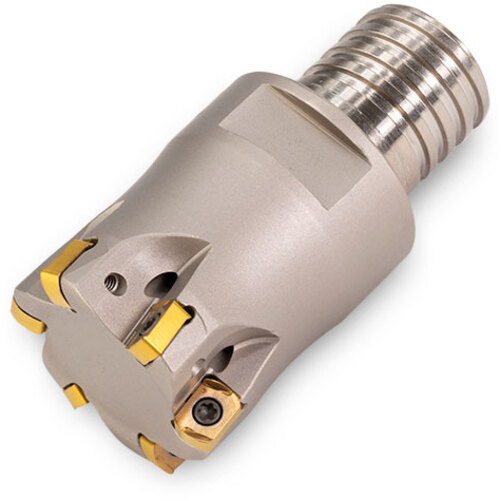

1TG1B-04006T6R01
4 mm IC Insert with 4 indexes .5 mm (.020″) Max. depth of cut Two different insert edge preparations provide application flexibility Excellent high feed performance & economy!
| Cutting Diameter (DC/DCX) | 0.438″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.266″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.02″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 0.88 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slotting | | Hub Diameter (DHUB) | 0.369″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 0.63″ | Cutting Diameter Maximum (DCX) | 0.438″ |
| Corner Radius (RE) | 0.035″ |
Product Features
| Family Description | 4 mm IC Insert with 4 indexes .5 mm (.020″) Max. depth of cut Two different insert edge preparations provide application flexibility Excellent high feed performance & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.000
