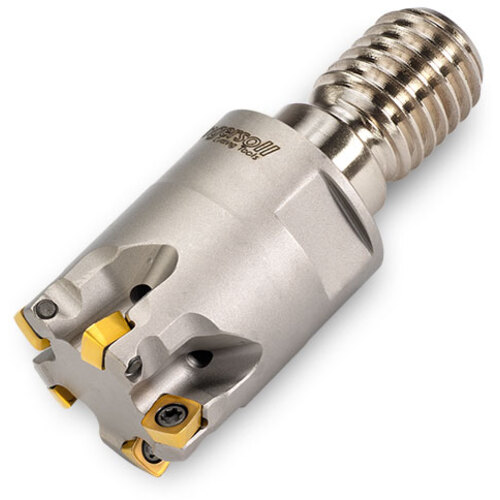

15G1B-07010X6R01
Three different insert edge preparations provide application flexibility Outboard wiper produces high-quality shoulder surface finish

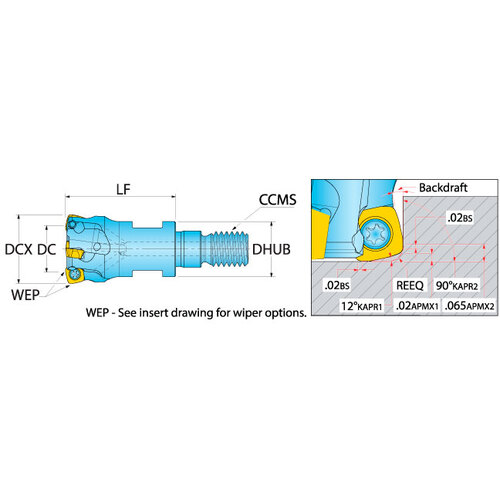

| Cutting Diameter (DC/DCX) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.54″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.023″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2.2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | | Hub Diameter (DHUB) | 0.704″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1″ | Cutting Diameter Maximum (DCX) | 3/4″ |
| Corner Radius (RE) | 0.043″ |
Product Features
| Family Description | Three different insert edge preparations provide application flexibility Outboard wiper produces high-quality shoulder surface finish | Country of Origin | Usa |
