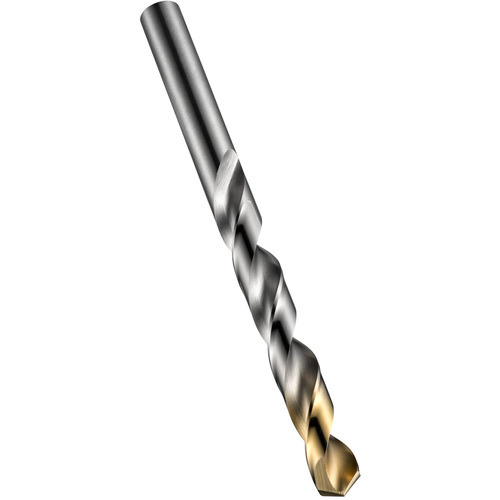

13.5 mm HSS Drill - 4xD - DIN 338 - Bright/TiN - 118 Degree Split Point E-code # A00213.5
Jobber Drill; 13.5 mm Dia. × 0.5315″ Shank Dia. × 160 mm OAL × 108 mm Flute Length ; 118 Degrees ; 4xD ; HSS ; TiN ; Series A002
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 13.5 mm | Helix Angle | CW |
| Decimal Equivalent | 0.5315 | Point Shape | Split Point |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.5 mm | Shank Type | Round |
| Measurement Type | Metric | Standard | DIN 338 |
| Angle | 118 Degrees | Connection Diameter Machine Side (DCONMS) | 0.5315″ |
| Cutting Edge Material | HSS | L Group | 4xD |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Tool Type | Drill |
| Coating | TiN | Tool Radius | 118 Degrees |
| Coolant Supply Property (CSP) | External | Series/List # | A002 |
| Cutting Depth | 108 mm | Overall Length (OAL) | 160 mm |
| Flute Length | 108 mm |
Product Features
| Family Description | E-code # A00213.5 | Country of Origin | JAPAN |
Shipping Info
Package Weight
4.249
