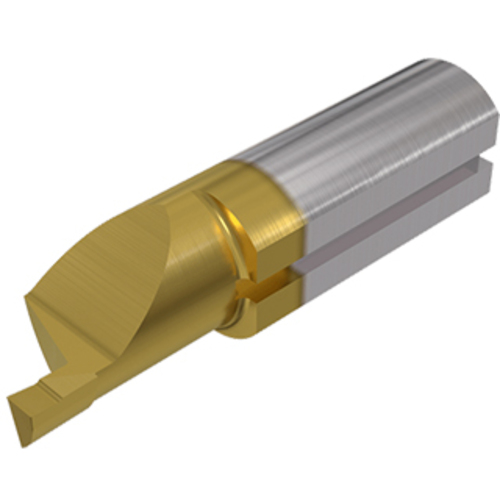

PICCO R 010.1508-20 IC228
Tool; 0.276″ Shank Dia. × 0.059″ CW × 0.098″ Max Depth × 1.378″ OAL ; Carbide ; Right Hand ; TiCN+TiN ; IC228

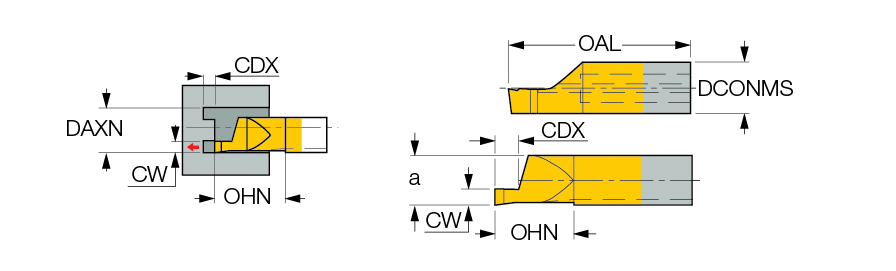

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Application | | Face Grooving | Int. Face Grooving | |
| Cutting Width (CW) | 0.059″ | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Depth Maximum (CDX) | 0.098″ | Max. Face Grooving Feed (ffg(max)) | 0.0016 ″/rev |
| Overall Length (OAL) | 1.378″ | Min. Face Grooving Feed (ffg(min)) | 0.0004 ″/rev |
| Cutting Direction (HAND) | Right Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.31″ |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.232″ |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC228 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overhang Minimum (OHN) | 0.83″ |
| Cutting Position | External |
Product Features
| Family Description | Inserts for face grooving from Dmin .236″ | Country of Origin | Israel |
| Remarks | Only right-hand inserts are available as standard All inserts are with sharp corners |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.036
