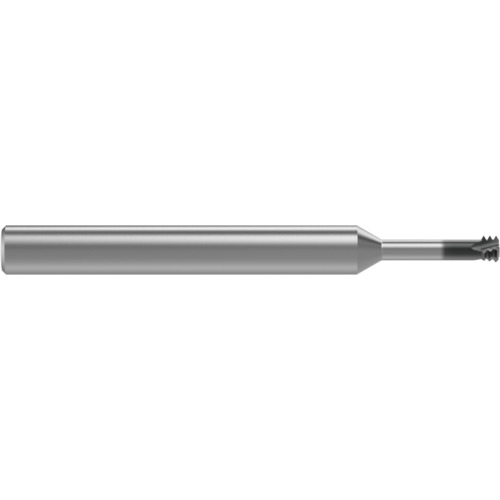

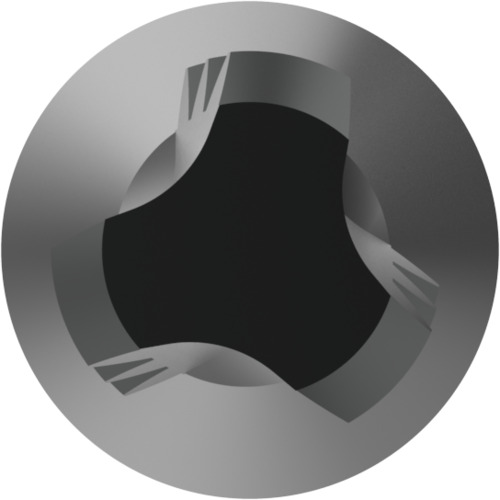

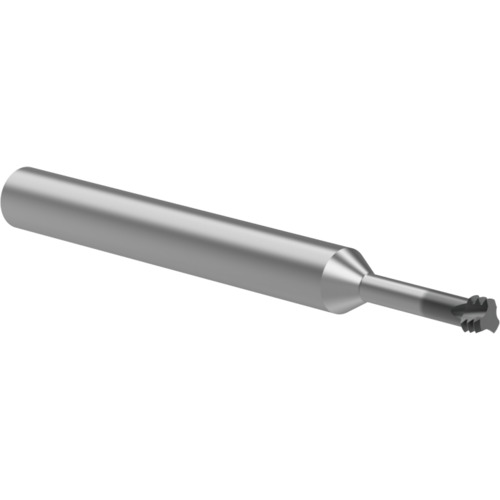

TM19032-3T3X THREADMILL
| Thread Size | #10 | Coolant Supply Property (CSP) | External |
| Threads per Inch (TPI) | 32 | Shank Type | Round |
| Thread Diameter Size (TDZ) | #10 | Coating | AM210 |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Flute Type | Helical |
| Cutting Diameter (DC) | 0.145″ | Measurement Type | Wire Gauge |
| Functional Length (LF) | 0.59″ | Length Group | 3xD |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid Carbide Thread Mills |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Left Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
