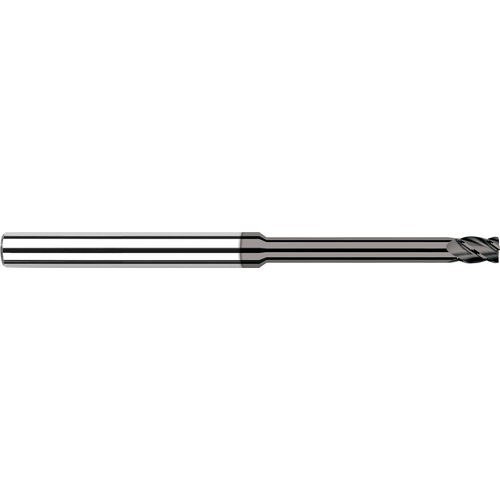

Diamond End Mills for Non-Ferrous Materials - CVD Diamond - 0.0780″ (5/64″) Cutter Diameter × 0.0100″ Radius × 0.1170″ Length of Cut × 0.6250″ (5/8″) Reach Carbide Corner Radius End Mill, 4 Flutes, CVD Diamond Coated
Corner Radius End Mill; 5/64″ Dia. × 0.117″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; CVDDIA
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 5/64″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 0.117″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 8D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | CVDDIA | Decimal Equivalent | 0.078125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| End Shape | Corner Radius |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.016
