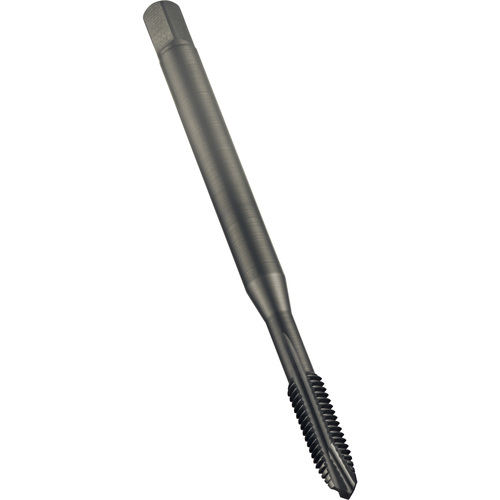

7/8-9 4 Flute 2B HSS-E UNC Machine Tap Spiral Point E-code # EP217/8
E-code # EP217/8
| Thread Standard | UNC | Tool Type | Machine Tap |
| Thread Size | 7/8″ - 9 | Connection Diameter Machine Side (DCONMS) | 18 mm |
| Thread Diameter Size (TDZ) | 7/8″ | Tapping Prehole Diameter (Pre-hole) | 49/64″ |
| Threads per Inch (TPI) | 9 | End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B | Style | Plug |
| Chamfer | 3.5P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Length Group | 2.5xD |
| Cutting Edge Material | HSSE | Measurement Type | Inch |
| Standard | DIN 2184-1 | Series/List # | EP21 |
Product Features
| Family Description | E-code # EP217/8 | Country of Origin | JP |
Shipping Info
Package Weight
1.6106
