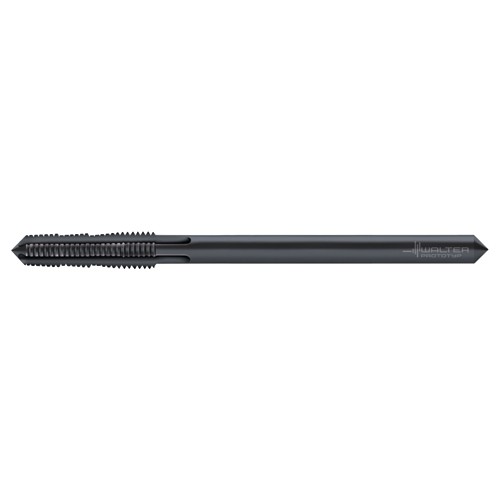

M6x1 6HX 3 Flute HSS VAP Spiral Point Tap
Spiral Point Tap; M6 × 1 mm ; 273.3 mm OAL ; 3 FL ; HSS ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 4.6 mm |
| Thread Size | M6 × 1 | Thread Cutting Part Length (THL) | 24 mm |
| Thread Diameter Size (TDZ) | M6 | Flute Helix Angle (FHA) | CW|45 Degrees |
| Thread Pitch (TP) | 1 mm | Flute Length | 40 mm |
| Thread Tolerance Class (TCTR) | 6HX | Flute Type | Straight |
| Overall Length (OAL) | 273.3 mm | End Shape | Spiral Point |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Standard | PWZ-NORM | Measurement Type | Metric |
Product Features
| Family Description | 20944-M6 | Country of Origin | Germany |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.088
