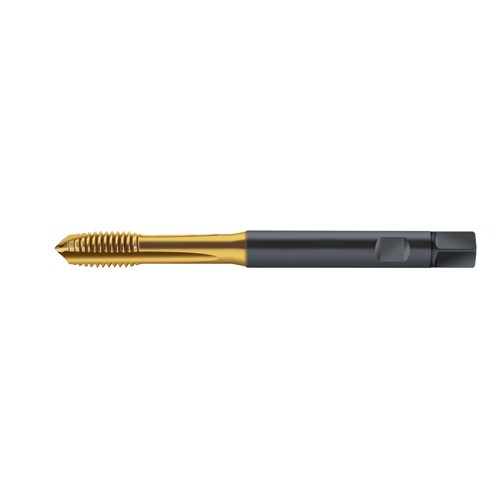

M3x0.5 6HX 3 Flute HSS TiN Synchrospeed MachineTap
S2021305-M3
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Standard | DIN 371 |
| Thread Size | M3 × 0.5 | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Diameter Size (TDZ) | M3 | Thread Cutting Part Length (THL) | 5 mm |
| Thread Pitch (TP) | 0.5 mm | Flute Helix Angle (FHA) | CW|40 Degrees |
| Thread Tolerance Class (TCTR) | 6HX | Flute Length | 15 mm |
| Overall Length (OAL) | 71.25 mm | Flute Type | Straight |
| Coating | TiN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Metric |
Product Features
| Family Description | S2021305-M3 | Country of Origin | GERMANY |
