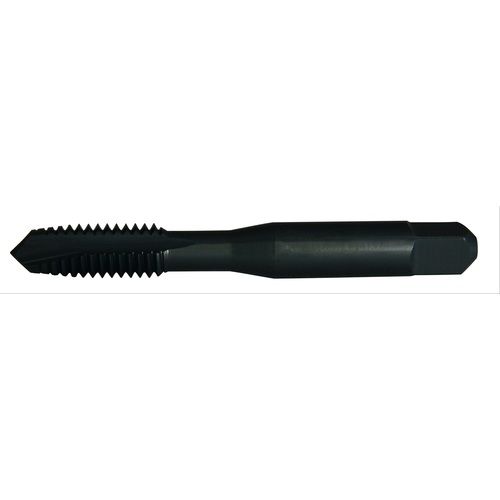

#8-32 UNC 2 Flute H3 Plug HSS Standard Spiral Point Tap- Steam Oxide
| Thread Standard | NC | Application | General Purpose |
| Thread Size | #8 - 32 | Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Thread Diameter Size (TDZ) | #8 | Thread Cutting Part Length (THL) | 3/4″ |
| Threads per Inch (TPI) | 32 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 | 2B | End Shape | Square |
| Overall Length (OAL) | 2-1/8″ | Style | Plug |
| Chamfer | Plug | Shank Type | Round w/ Drive Square |
| Coating | Black Oxide | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Length Group | 2D |
| Cutting Edge Material | HSS | Measurement Type | Wire Gauge |
| Tool Type | Machine Tap | Series/List # | SPGP-SO |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.999
