.059 End Mill 4FL SQ TA - SER M4S .059x1/8x.089x1-1/2

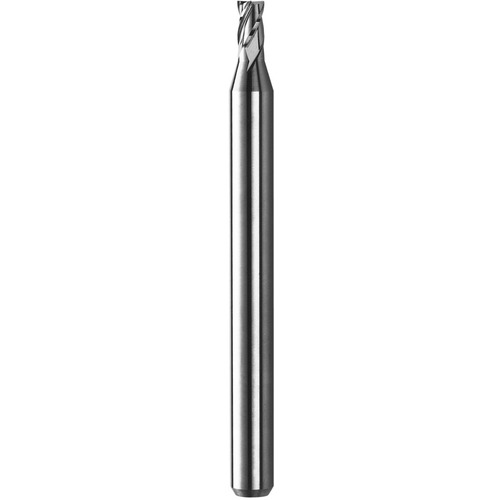

Square End Mill; 0.059″ Dia. × 0.089″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 0.059″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.089″ | Usable Length (LU) | 1.411″ |
| Overall Length (OAL) | 1-1/2″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.059″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
2.56500
Package Width
.50800
Package Weight
.016
