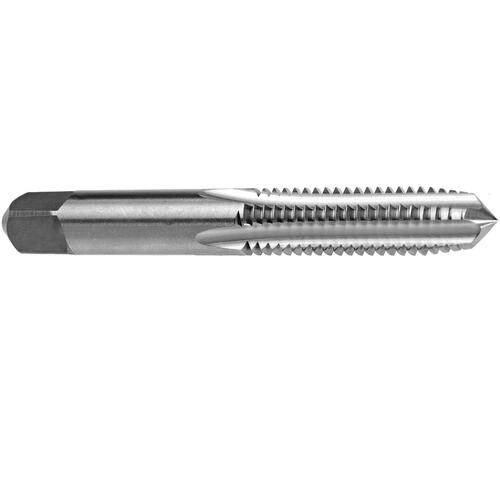

5/16-18 3FL H-3 HD SPFL PENTA RELIEF BOTTOM TAPS 106HD
| Thread Diameter Size (TDZ) | 5/16″ | Tool Type | Tap |
| Threads per Inch (TPI) | 18 | Chamfer | Bottom |
| Overall Length (OAL) | 2-23/32″ | Coating | Uncoated |
| Usable Length (LU) | 1-1/8″ | Flute Length | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.238″ | Flute Type | Spiral Flute |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Square Size | 0.238″ × 3/8″ |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | 106HD |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.076
