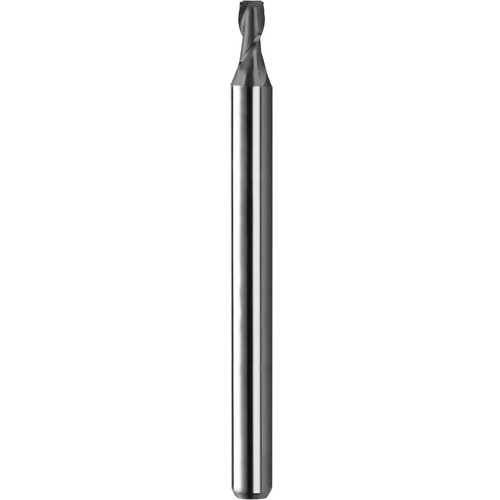

| Cutting Diameter (DC) | 0.038″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1.386″ |
| Depth of Cut Maximum (APMX) | 0.114″ | Corner Radius (RE) | None |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 0.038″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | M2S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
2.32000
Package Width
.32000
Package Weight
.013
