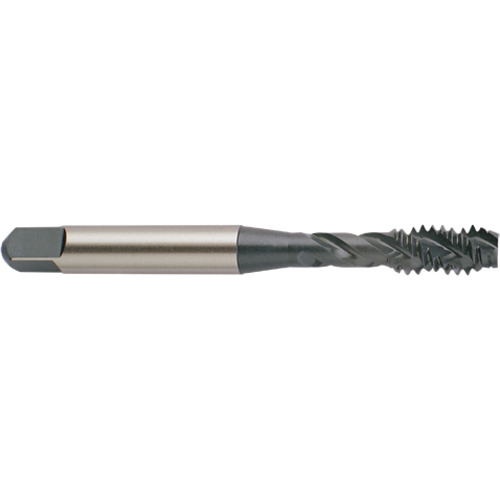

Spiral Flute Tap; M7 × 1 mm ; 89.99 mm OAL ; 3 FL ; HSSE-V3 ; Hardslick ; D5 ; Series E9
| Thread Diameter Size (TDZ) | M7 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 1 mm | Chamfer | 2P-3P |
| Thread Standard | M | Coating | HL |
| Overall Length (OAL) | 89.99 mm | Shank Type | Square |
| Thread Cutting Part Length (THL) | 11 mm | End Shape | Modified Bottoming |
| Usable Length (LU) | 28.6 mm | Length Group | 2.5xD |
| Connection Diameter Machine Side (DCONMS) | 8.08 mm | Square Size | 6.05 mm |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Tapping Prehole Diameter (Pre-hole) | 6.091 mm |
| Cutting Edge Material | HSSE-V3 | Series/List # | E9 |
| Thread Tolerance Class (TCTR) | D5 | Thread Size | M7 × 1 mm |
| Standard | DIN/ANSI |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
4.625
Package Width
0.625
Package Height
0.5
Package Weight
0.059
