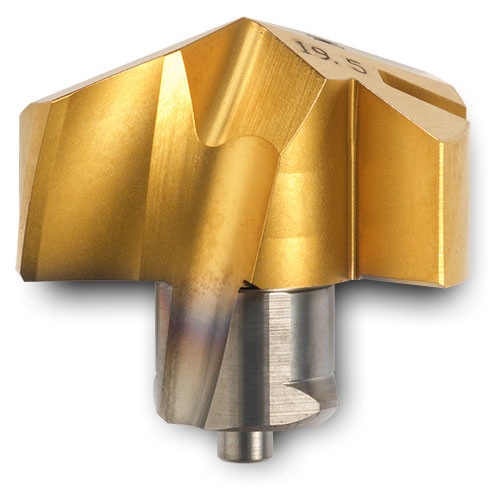

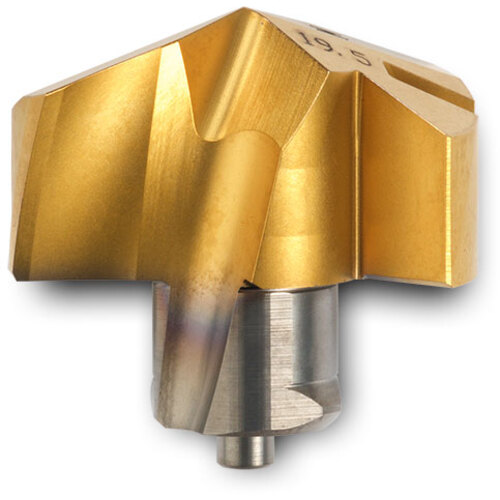

TMA1990R01 IN2505
Grade IN2505 Holds +.002/-.000 on Diameter

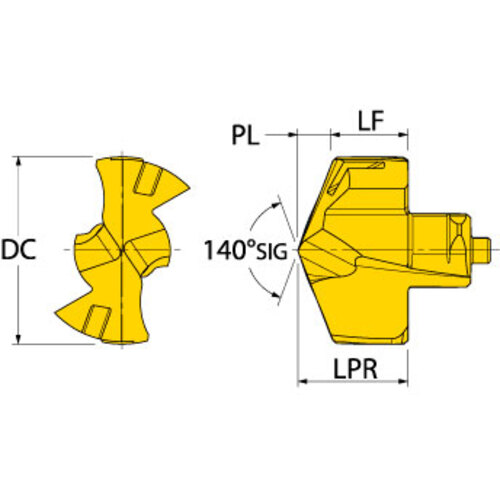

| Cutting Diameter (DC) | 0.783″ | Functional Length (LF) | 0.313″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Drill Mill | Drilling | | Measurement Type | Inch |
| Grade | IN2505 | Point Length (PL) | 0.12″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Protruding Length (LPR) | 0.433″ | Coating | TiAlN+TiN |
| Insert Seat Size Code (SSC) | 19 | Body Material | Steel |
Product Features
| Family Description | Grade IN2505 Holds +.002/-.000 on Diameter | Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.053
