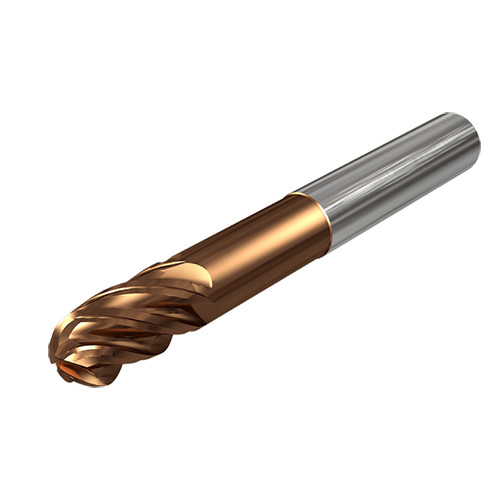

EBI-5 .625-1.63WVF3.5 IC608
5 flute, ball nose endmills with and without relieved necks

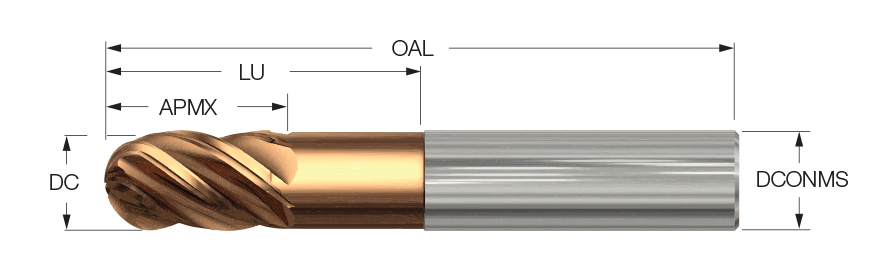

| Cutting Diameter (DC) | 5/8″ | Corner Radius (RE) | 0.312″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Grade | IC608 |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 3-1/2″ | End Shape | Square |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiCrSiN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.625″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Weldon |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
Product Features
| Family Description | 5 flute, ball nose endmills with and without relieved necks | Country of Origin | USA |
| Remarks | Each item is also available with a Weldon shank. Substitute a W in place of the C in the listed designations (example: EBI-5 .375-1.CVF2.5 = cylindrical type; ECI-5 .375-1.WVF2.5 = Weldon type) |
