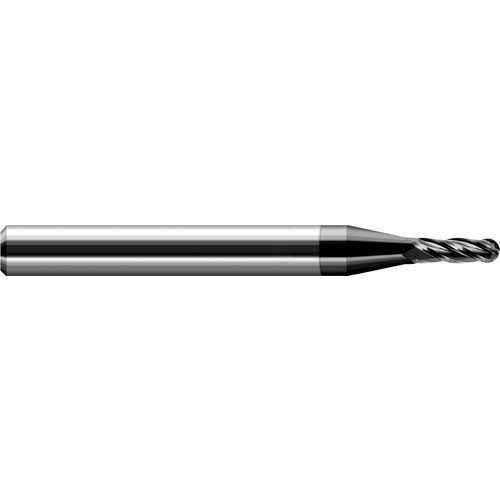

Ballnose End Mill; 0.019″ Dia. × 0.057″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Amorphous Diamond
| Cutting Diameter (DC) | 0.019″ | Usable Length (LU) | 0.057″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.0095″ |
| Depth of Cut Maximum (APMX) | 0.057″ | Length Group | 3D |
| Overall Length (OAL) | 1-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | DLC | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Center Cutting | No |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.009
