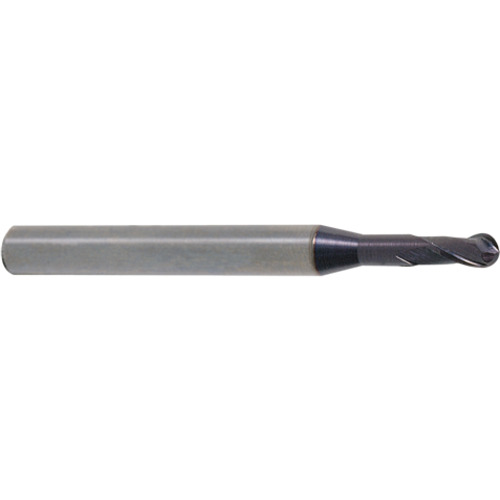

Ball Nose End Mill; 1 mm Dia. × 1.5 mm LOC × 4 mm Shank Dia. × 45 mm OAL ; 2 FL ; Carbide ; ALTiN ; Series EM886
| Cutting Diameter (DC) | 1 mm | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm | Neck Diameter (DN) | 0.97 mm |
| Overall Length (OAL) | 45 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0394″ |
| Coating | ALTiN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | EM886 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 6 mm |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
2.625
Package Width
1/0/1900 15:00
Package Height
0.625
Package Weight
0.026
