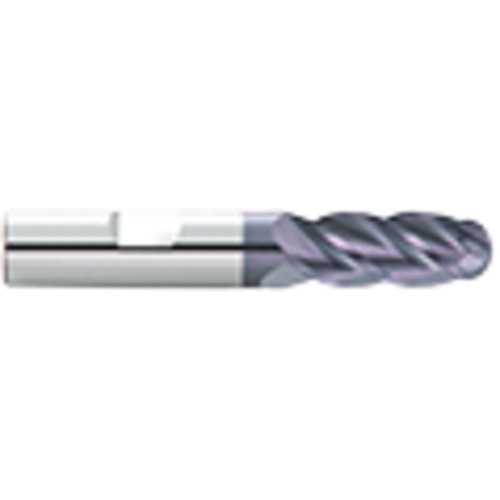

20mm × 20mm × 38mm × 100mm OAL 4 Flute Single End Ball Nose VRX End Mill W/Flat-AlTiN
| Cutting Diameter (DC) | 20 mm | Flute Helix Angle (FHA) | 41 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 38 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 100 mm | Corner Radius (RE) | 10 mm |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Decimal Equivalent | 0.7874″ |
| Flute Count (NOF) | 4 |
Shipping Info
Package Weight
0.9
