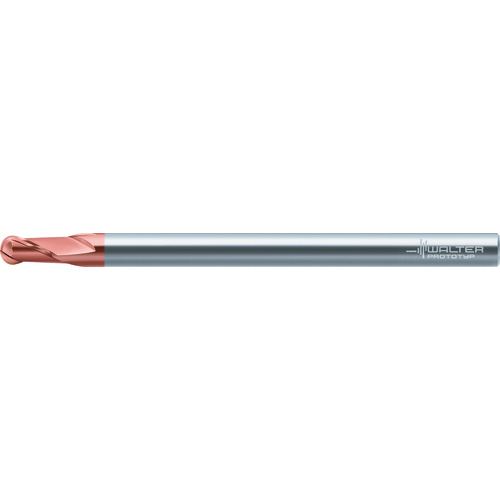

4 mm Dia. × 6 mm Shank × 6 mm DOC × 70 mm OAL, Carbide 2 Flute, CW|30° Helix, Round, Ballnose End Mill
H8004788–4–70
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 6 mm | Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 70 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1575″ |
| Flute Count (NOF) | 2 |
Product Features
| Family Description | H8004788–4–70 | Country of Origin | GERMANY |
Shipping Info
Package Weight
.064
