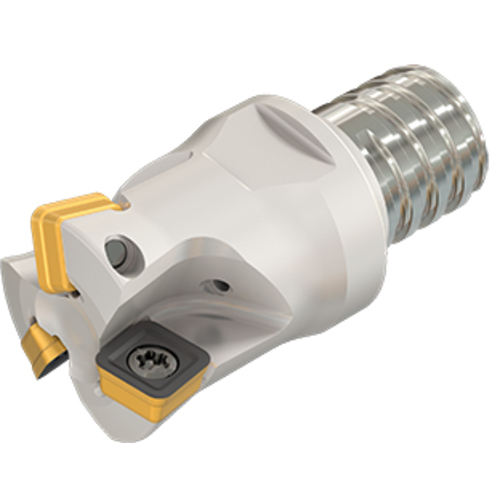

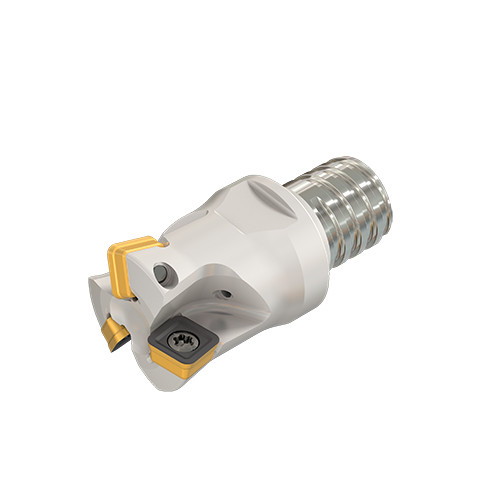

FFQ4 D1.25-07-MMT21-06
Indexable End Mill; 1-1/4″ Dia. × 0.0275″ LOC × 1.146″ Shank Dia. × 2.159″ OAL ; 7 FL ; 12 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Connection Thread Nominal Size Machine Side (THSZMS) | T21 |
| Cutting Diameter (DC) | 0.903″ | Drive Size (DRVS) | 0.945″ |
| Cutting Item Count (CICT) | 7 | Flute Count (NOF) | 7 |
| Depth of Cut Maximum (APMX) | 0.0275″ | Torque (TQ) | 7.97 lbfxin |
| Overall Length (OAL) | 2.159″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.146″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | FFQ4 SOMT 060210T | Body Material | Steel |
| Functional Length (LF) | 1-1/4″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Tool Type | Fast Feed Endmill | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | Fast feed endmills with MULTI-MASTER threaded adaptation carrying single-sided square inserts with 4 cutting edges | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection. To generate a straight surface without cusps, the width of cut must not exceed DC. Radius for programing: for insert SOMT .067 , for insert SOMW .075. When mounting insert SOMW, APMX=.024. For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50%. |
