![ST 3/4 0.313″x 6.3″ SHRINK FIT EXTENSION/Straight Shank/THROUGH COOLANT [ST3/4-SFH5/16-6.30]](/images/Fittings/hq-new/System_Images/YG1/Prod_Pic/VS/VS_Enlarge.jpg)

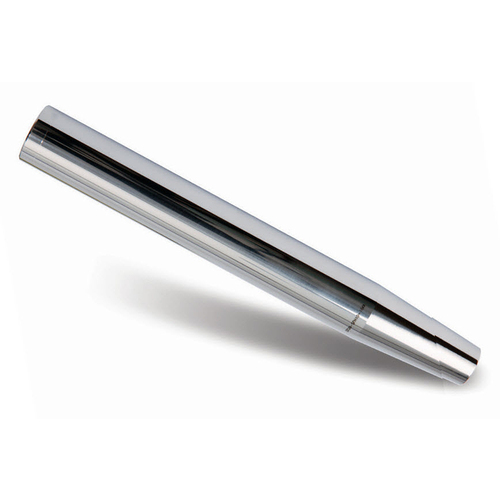

ST 3/4 0.313″x 6.3″ SHRINK FIT EXTENSION/Straight Shank/THROUGH COOLANT [ST3/4-SFH5/16-6.30]
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Thread Designation Inside (THID) | M6 × 1.0 |
| Connection Diameter Workpiece Side (DCONWS) | 5/16″ | Clamping Length Workpiece Side (LSCWS) | 1.4173″ |
| Shank Size (SS) | 3/4″ | Measurement Type | Inch |
| Body Length_2 (LB_2) | 1.417″ | Tool Type | SHRINK FIT EXTENSION/Straight Shank/THROUGH COOLANT |
| Body Taper End Diameter (BTED) | 0.551″ | Model Number | ST3/4-SFH5/16-6.30 |
| Overall Length (OAL) | 6.3″ |
Product Features
| Remarks |
|
Country of Origin | KR |
Shipping Info
Package Length
6.89
Package Width
1.25
Package Height
1.25
Package Weight
0.65
