0.6250″X1.125″ DIRLL

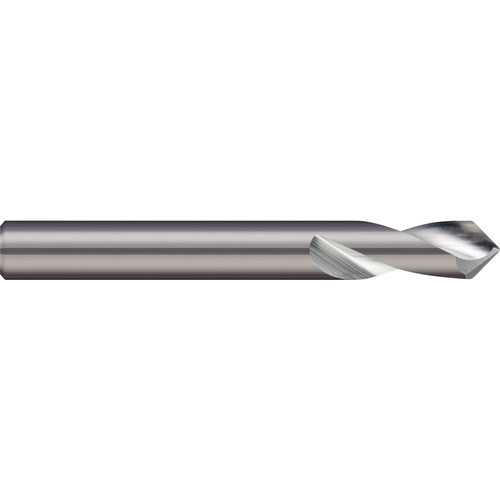

Drill Bit; 5/8″ Dia. × 1-1/8″ LPR × 3″ OAL × 5/8″ Shank Dia. ; 120 Degrees ; Round Shank ; Carbide ; Uncoated
Additional Canadian Tariff of 25 %
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ | Flute Length | 1-1/8″ |
| Decimal Equivalent | 0.625″ | Measurement Type | Inch |
| Point Angle (SIG) | 120 Degrees | Length Group | 1.8D |
| Angle | 120 Degrees | Cutting Direction (HAND) | Right Hand |
| Protruding Length (LPR) | 1-1/8″ | Tool Type | Spotting and Centering Drill |
| Overall Length (OAL) | 3″ | Cutting Length | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Material | Carbide |
| Shank Type | Round | Length Chip Flute (LCF) | 1-1/8″ |
| Coating | Uncoated | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.45
