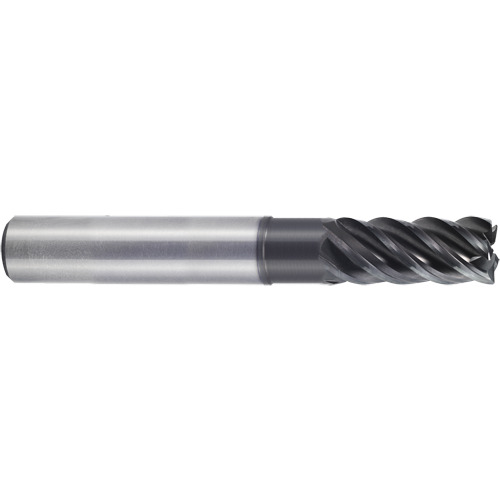

Square End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; Y-Coating ; Series UGMH07
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/8″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 4″ | Tool Type | 5 Flute Square Extended Neck |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | UGMH07 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.375
Package Width
0.625
Package Height
0.625
Package Weight
0.109
