5934 .045X1/8X.135X1-1/2

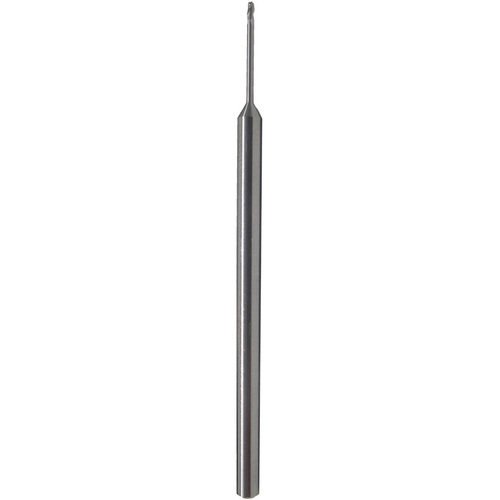

Corner Radius End Mill; 0.045″ Dia. × 0.135″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 5934
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 0.045″ | Corner Radius (RE) | 0.01″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Head Length (LH) | 0.135″ |
| Depth of Cut Maximum (APMX) | 0.135″ | Tool Type | Miniature End Mill |
| Overall Length (OAL) | 1-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.045″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5918 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| Usable Length (LU) | 0.135″ | Trade Name | NANO CUT |
| Application | Finishing |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.017
