4mm-4FL-SE-REG (14mm LOC) TiCN

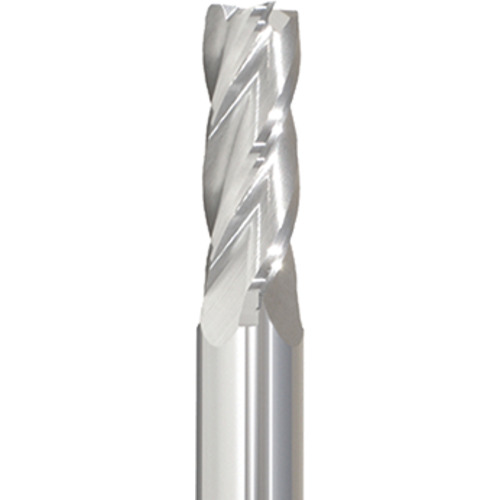

Square End Mill; 4 mm Dia. × 14 mm LOC × 4 mm Shank Dia. × 51 mm OAL ; 4 FL ; Carbide ; TiCN ; Series 206
| Cutting Diameter (DC) | 4 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | Slotting | Profiling | Ramping |
| Depth of Cut Maximum (APMX) | 14 mm | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 51 mm | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1575″ |
| Coating | TiCN | Series/List # | 206 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.020
