52702-C3 .109 EM-ALTIN

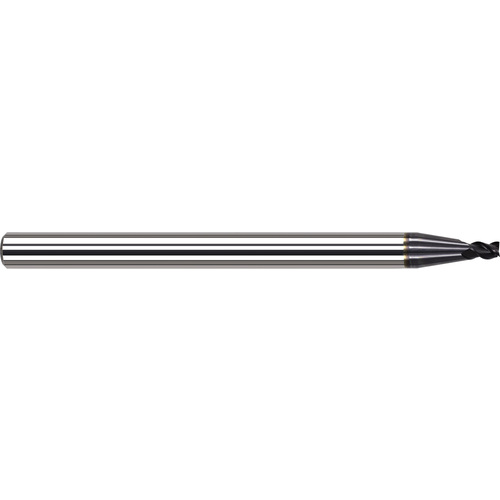

Corner Radius End Mill; 7/64″ Dia. × 0.164″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 7/64″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 0.164″ | Length Group | 1.5D |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.109″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.164″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.009
