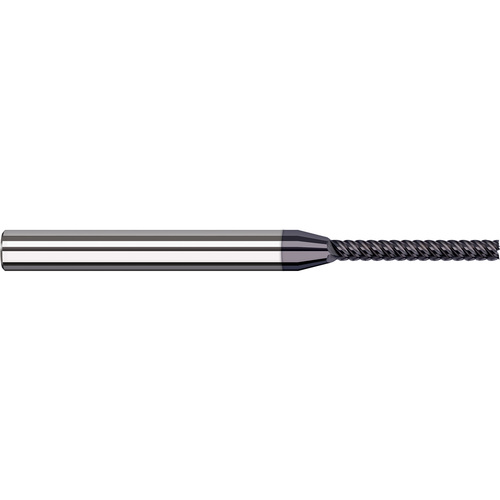

59102-C6 .109 EM-NANO
| Cutting Diameter (DC) | 7/64″ | Usable Length (LU) | 0.9″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 0.9″ | Length Group | 8D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN Nano | Decimal Equivalent | 0.109″ |
| Flute Count (NOF) | 7 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 41 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.016
