932110 .156 EM

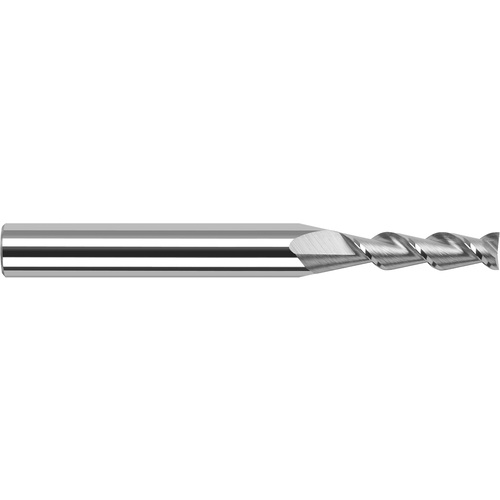

Square End Mill; 5/32″ Dia. × 3/4″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 5/32″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | 5D |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.156″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Shank Size (SS) | 3/16″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.043
