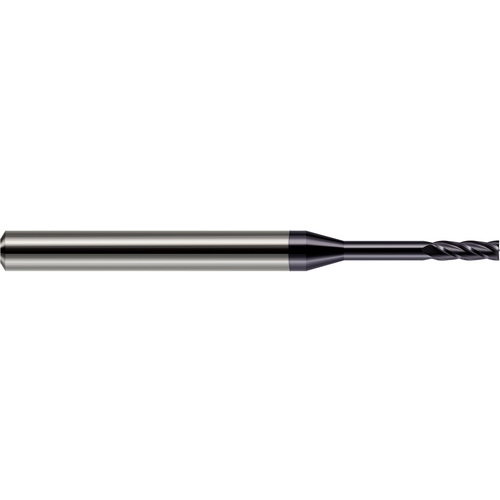

76215-C3 .015 EM-ALTIN

Item # 5549085
UNSPSC: 27112803
Brand: Harvey Tool
MFG#: 76215-C3
Cutting Diameter (DC) 1/64″ Neck Diameter (DN) 0.0142″
Connection Diameter Machine Side (DCONMS) 1/8″ Neck Length (LN) 0.083″
Depth of Cut Maximum (APMX) 0.045″ Length Group 8D
Overall Length (OAL) ‎1-1/2″ Flute Type Spiral
Cutting Edge Material Carbide Body Material Carbide
Coating AlTiN Decimal Equivalent 0.015″
Flute Count (NOF) 2 Measurement Type Inch
Flute Helix Angle (FHA) 30 Degrees Shank Size (SS) 1/8″
Shank Type Round Cutting Direction (HAND) Right Hand
End Shape Square Single / Double End Single End
Usable Length (LU) 0.128″

Product Features

Country of Origin USA

Shipping Info

Package Weight
.009
Change Quantity?
