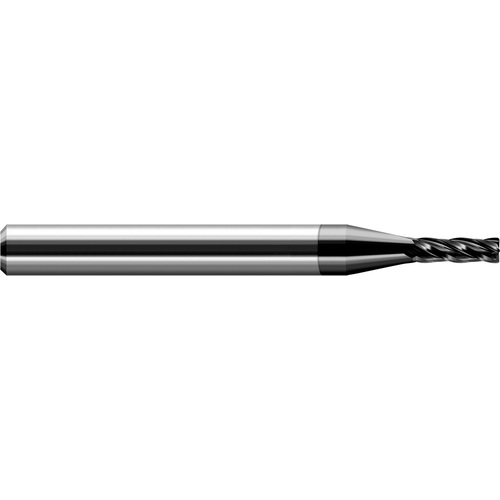

72805-C4 .375 EM-DMD

Item # 5548943
UNSPSC: 27112803
Brand: Harvey Tool
MFG#: 72805-C4
Cutting Diameter (DC) 3/8″ Corner Radius (RE) 0.005″
Connection Diameter Machine Side (DCONMS) 3/8″ Length Group 3D
Depth of Cut Maximum (APMX) 1″ Flute Type Spiral
Overall Length (OAL) ‎2-1/2″ Body Material Carbide
Cutting Edge Material Carbide Decimal Equivalent 0.375″
Coating Amorphous Diamond Measurement Type Inch
Flute Count (NOF) 4 Shank Size (SS) 3/8″
Flute Helix Angle (FHA) 30 Degrees Corner Radius (RE) / Chamfer Width (CHW) 0.005″
Shank Type Round Cutting Direction (HAND) Right Hand
End Shape Corner Radius Single / Double End Single End
Usable Length (LU) 1″

Product Features

Country of Origin USA

Shipping Info

Package Weight
.144
