982214 .218 EM

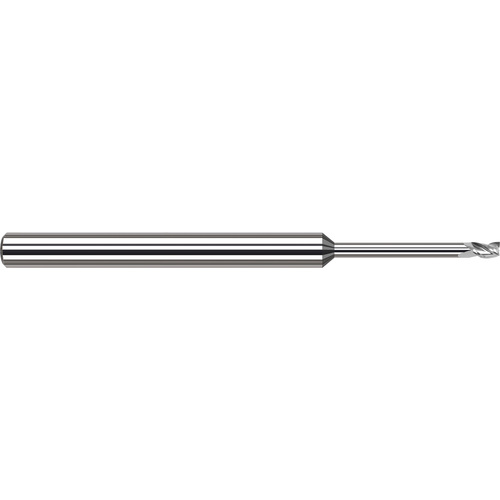

SQ End Mill; 7/32″ Dia. × 0.33″ LOC × 1/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 7/32″ | Usable Length (LU) | 2-3/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.214″ |
| Depth of Cut Maximum (APMX) | 0.33″ | Length Group | 10D |
| Overall Length (OAL) | 4″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.219″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.102
